Compact Disc Player FD1000 SL01

Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN

Data
Forum
Pictures
Collections

  • Year
  • 1983
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 309477

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Compact Disc Player FD1000 [SL01] - Magnavox Co., Commercial
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 320 x 73 x 267 mm / 12.6 x 2.9 x 10.5 inch
  • Notes

  • The Magnavox FD1000 and the Marantz CD63 were the first European built CD players sold in the USA. Both are versions of the Philips CD100 and the Magnavox FD1000 is very similar in appearance to the Philips CD100.

    Specification
    Frequency range ...............:  20Hz-20kHz ± 0.3 dB
    Dynamic Range .................:  > 90dB
    Signal to noise ratio ...........:  > 90 dB (20Hz-20kHz)
    Channel separation ...........:  > 86 dB (20Hz-20kHz)
    Total harmonic distortion ...:  < 0.005%
    D/A Conversion .................: 16 bit with digital filtering
    Error Correction ................:  Cross Interleave Reed Solomon Code (CIRC)
    Sampling Frequency .........:  44.1kHz
    Audio Output Level............:  2 V rms
    Power Requirement ..........: 120 V AC 60Hz

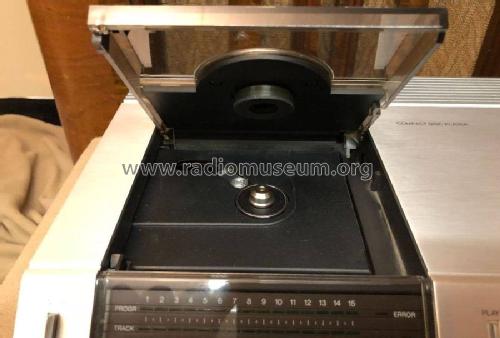

    Uses the Philips CDM-0 drive mechanism and first generation Philips chipset.
    SAA7010 CD-Decoder
    SAA7000 Interpolation
    SAA7020 Error correction
    SAA7030  4 x Oversampling and digital filter
    TDA1540 14 + 2 bit D/A converter (one per audio channel).

    Made in Belgium and Holland



  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Mentioned in
  • - - Manufacturers Literature (Magnavox FD1000SL brochure)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Philips CD100 Operating Instructions)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
