- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1958 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 304209
- Number of Tubes
- 29
- Valves / Tubes
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz

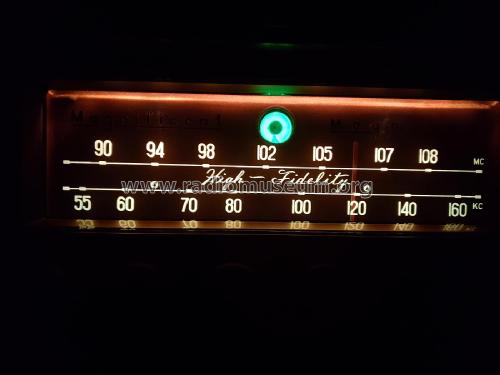

- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz; 117 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 50 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org

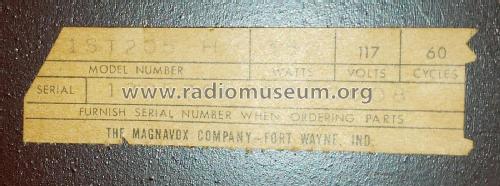

- Model: Concert Grand 1ST205H - Magnavox Co., Commercial
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 50 x 36.5 x 17.25 inch / 1270 x 927 x 438 mm
- Notes
-
This model is an earlier version of Concert Grand 1ST800F. It was available in several styles in mahogany, French or American walnut, cherry, and ebony woods. There is a connection for a S-39 companion speaker system.

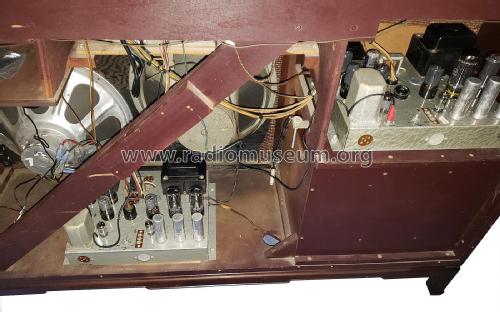

There are two 15 inch diameter speakers and two "treble horns" for frequencies above 1000 Hz.
There is a separate 9-tube amplifier for each channel, and the tuner has 11 tubes.
- Mentioned in
- - - Manufacturers Literature
- Author
- Model page created by David Erali. See "Data change" for further contributors.
