- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1961 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 191423
Magnavox Concert Hall FM-45 badge

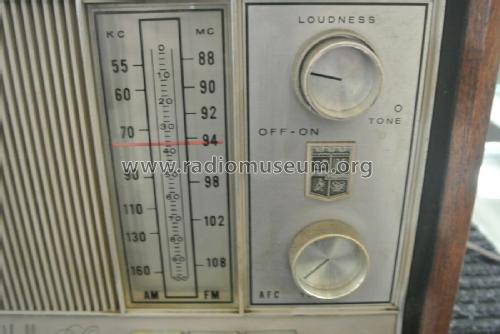

Magnavox Concert Hall FM-45 dial

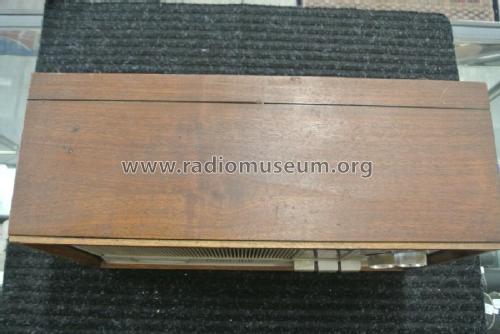

Magnavox Concert Hall FM-45 top
Magnavox Concert Hall FM-45 side

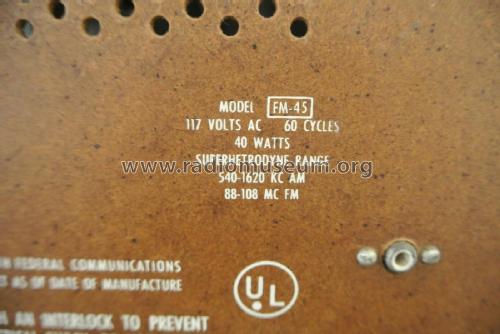

Magnavox Concert Hall FM-45 back detail
Magnavox Concert Hall FM-45 layout
Magnavox Concert Hall FM-45 side
Magnavox Concert Hall FM-45 chassis
Magnavox Concert Hall FM-45 chassis detail
Magnavox Concert Hall FM-45 chassis detail
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Concert Hall FM-45 - Magnavox Co., Commercial
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 15 x 8.75 x 5 inch / 381 x 222 x 127 mm
- Source of data
- - - Data from my own collection
- Author
- Model page created by John Backscheider. See "Data change" for further contributors.
