• Year
  • 1957 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 263368

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superhet with RF-stage; ZF/IF 455/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Powered by external power supply or a main unit. / 60 cycles, 110-120 Volt
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Ch= CR-718 - Magnavox Co., Commercial
  • Shape
  • Chassis only or for «building in»
  • Notes

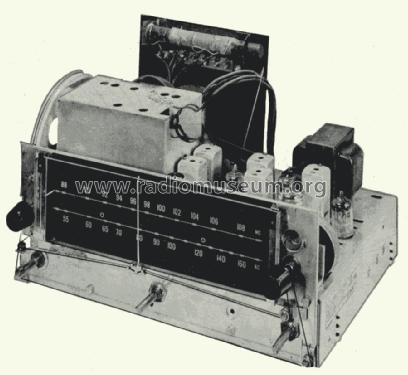

  • The Magnavox Chassis CR-718 is an externally powered FM-AM tuner.

  • Author
  • Model page created by Dirk Taekels. See "Data change" for further contributors.
