Chassis Ch= CTA455AA 350 Series
Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1955 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 306137
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- 6BQ7A 6U8 6CB6 6CB6 6CB6 6CB6 6AU6 6AU6 6AU6 6T8 6W6GT 12AU7 6SN7GTA 6S4 6AL5 6SN7GTA 6CD6G 6AX4GT 1B3GT 5U4GA 24DP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Chassis Ch= CTA455AA 350 Series - Magnavox Co., Commercial
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Magnavox Chassis CTA455AA is a 24” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with VHF tuner-700458-1 and picture tube 24DP4A.
- Mentioned in
- Photofact Folder, Howard W. SAMS (set 325 Folder 1 Dated 8-56 Production Changes Bulletin 162)
- Literature/Schematics (1)

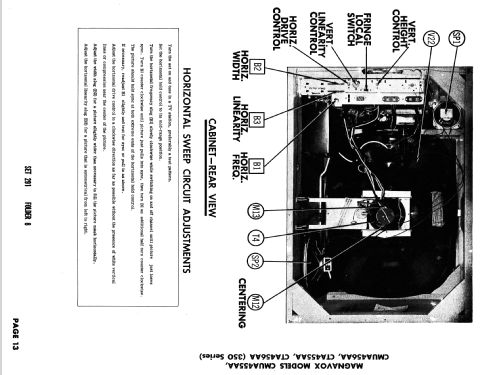

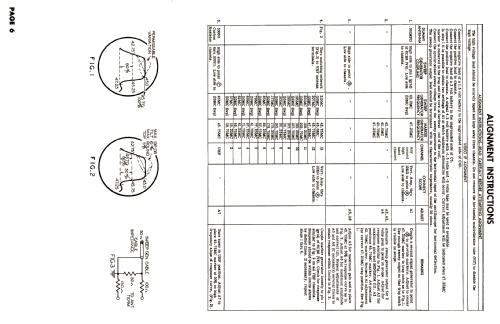

- Photofact Folder, Howard W. SAMS (Set 291 Folder 8 Dated 10-55)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
