FM-40 ; Magnavox Co., (ID = 530117) Radio

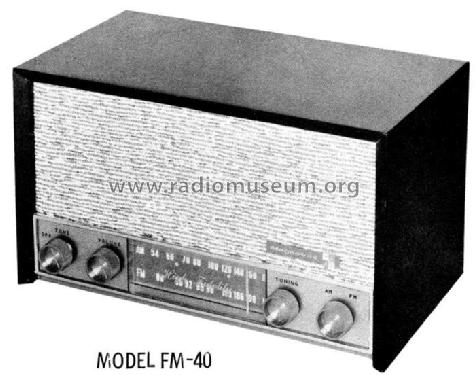

Magnavox Co.,: FM-40 [Radio] ID = 530117 700x552
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM-40, Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN:
Sams Photofact Folders

Country:  United States of America (USA)
Manufacturer / Brand:  Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
Year: 1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 12DT8 12BA6 12BE6 12BA6 12AL5 12AV6 50C5
Main principle ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage AC/DC-set / 110 - 120 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: FM-40 - Magnavox Co., Commercial
Shape Tablemodel, low profile (big size).

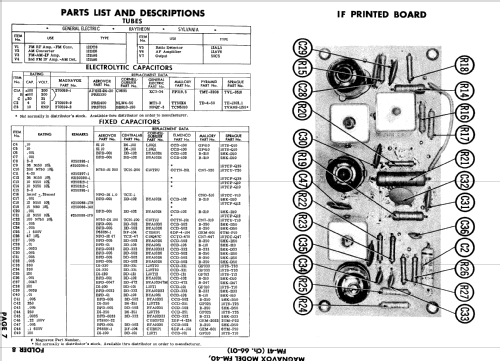

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 4-62, Set 573, Folder 8)

Model page created by Egon Penker. See "Data change" for further contributors.
