- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1966 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 175485
- Number of Transistors
- 7
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1 x 2,6 V Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Various materials
- from Radiomuseum.org

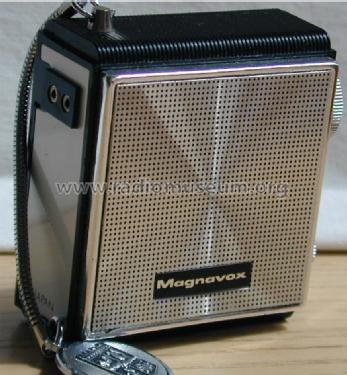

- Model: Magna-mate VII AM-805 - Magnavox Co., Commercial
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 56 x 55 x 22 mm / 2.2 x 2.2 x 0.9 inch
- Notes
- Comes with hard case gift box covered by velvet and inside silk layers.Keychain ring with Magnavox logo at one side and type "Magna-Mate" on the other.
- Net weight (2.2 lb = 1 kg)
- 0.8 kg / 1 lb 12.2 oz (1.762 lb)
- Author
- Model page created by Eckhard Wegner. See "Data change" for further contributors.
