Pocketmate AM60

Pocketmate AM60; Magnavox; where? (ID = 713899) Radio

Pocketmate AM60; Magnavox; where? (ID = 713900) Radio
Pocketmate AM60; Magnavox; where? (ID = 760928) Radio Pocketmate AM60; Magnavox; where? (ID = 760929) Radio
Pocketmate AM60; Magnavox; where? (ID = 1383548) Radio Pocketmate AM60; Magnavox; where? (ID = 1384548) Radio
Use red slider bar for more.
Pocketmate AM60; Magnavox; where? (ID = 760928) Radio

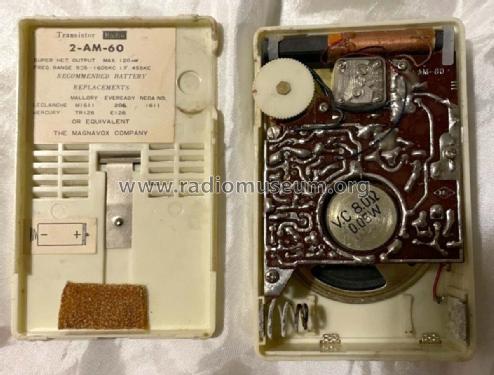

Magnavox; where?: Pocketmate AM60 [Radio] ID = 760928 460x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pocketmate AM60, Magnavox; (where?)

Country:  Japan
Manufacturer / Brand:  Magnavox; (where?)
Year: 1960 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2SA159 2SA154 2SA154 2SB112 2SB112 2SB112
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Pocketmate AM60 - Magnavox; where?
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes Price in UK £9.6s.3d. plus tax £2.13s.9d.
Price in first year of sale 12.00 GBP
Source of data -- Schematic
Circuit diagram reference Radio and TV Servicing books (R&TVS) book
Mentioned in Radio! Radio!, Hill, 1996

Model page created by Keith Staines. See "Data change" for further contributors.
