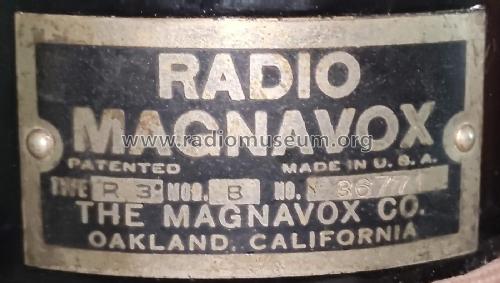

For model R3B early, Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN

Country:  United States of America (USA)
Manufacturer / Brand:  Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
Year: 1921 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
Loudspeaker Horn / Ø 14 inch = 35.6 cm
Power out
from Radiomuseum.org Model: R3B [early] - Magnavox Co., Commercial
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 14 x 26 x 0 inch / 356 x 660 x 0 mm

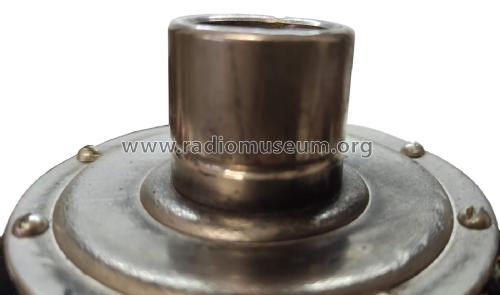

Notes straight neck electrodynamic Horn Speaker. Field coil 7 ohms, current ca.1 Amp.; smooth painted horn.
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Price in first year of sale 45.00 $
Collectors' prices
Mentioned in Le Guide du Collectionneur TSF Biraud/Foster, Vol. II (Radio Horn Speaker Encyclopedia - Floyd A.Paul)
Literature/Schematics (2) Radio Broadcast, May 1922, p. 75
