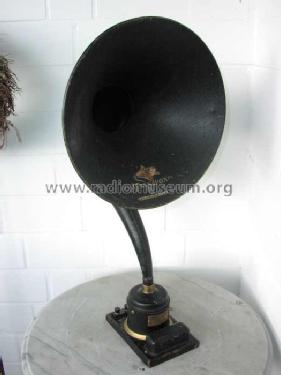

R3D ; Magnavox Co., (ID = 374923) Speaker-P R3D ; Magnavox Co., (ID = 374925) Speaker-P
R3D ; Magnavox Co., (ID = 374926) Speaker-P R3D ; Magnavox Co., (ID = 374927) Speaker-P
R3D ; Magnavox Co., (ID = 374937) Speaker-P R3D ; Magnavox Co., (ID = 1261408) Speaker-P
R3D ; Magnavox Co., (ID = 1278652) Speaker-P R3D ; Magnavox Co., (ID = 1469773) Speaker-P
R3D ; Magnavox Co., (ID = 1469774) Speaker-P R3D ; Magnavox Co., (ID = 1469775) Speaker-P
Use red slider bar for more.

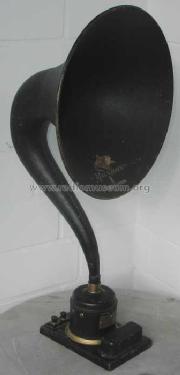

R3D ; Magnavox Co., (ID = 374923) Speaker-P
Magnavox Co.,: R3D [Speaker-P] ID = 374923 336x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model R3D, Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN

Country:  United States of America (USA)
Manufacturer / Brand:  Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
Year: 1924 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios)
Loudspeaker Horn / Ø 14 inch = 35.6 cm
Power out
from Radiomuseum.org Model: R3D - Magnavox Co., Commercial
Material Metal case
Dimensions (WHD) 355 x 725 x 310 mm / 14 x 28.5 x 12.2 inch
Notes Field coil 8-50 Ohms (rheostat) for 6 Volt storage battery. Field current 0.6 - 0.1 Amp. Ind.coil Input 700 Ohms. Crystalline finish. R3 (without suffix) was the special driver for different horn speaker models from 1921 - 1924. But there was also a radio set named R-3 !
Price in first year of sale 35.00 USD
Collectors' prices
Mentioned in Radio Horn Speaker Encyclopedia, by Floyd A.Paul
Literature/Schematics (2) Radio Broadcast, Apr. 1924, p. 529

Model page created by Reiner Scholz. See "Data change" for further contributors.
