• Country
• United States of America (USA)

• Manufacturer / Brand
• Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN

• Year
• 1924

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 46446

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

• Main principle
• TRF without regeneration

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Material
• Wooden case

• from Radiomuseum.org
• Model: TRF5 Receiving Set - Magnavox Co., Commercial

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 20.5 x 9.625 x 14.625 inch / 521 x 244 x 371 mm

• Notes

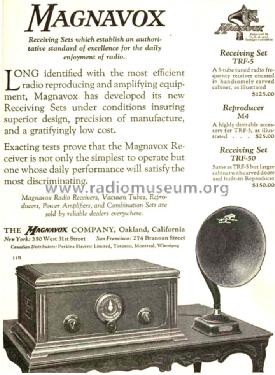

• Single dial variometer tuning. Set consisting of radio and separate M4 horn speaker.
  Price without tubes, batteries and reproducer.

• Price in first year of sale
• 125.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Radio Manufacturers of the 1920's, Vol. 2 (p.138)

• Literature/Schematics (2)
• Radio Broadcast, Oct. 1924, Page 521
