Èlektronika - Электроника LC-430 ЛЦ-430

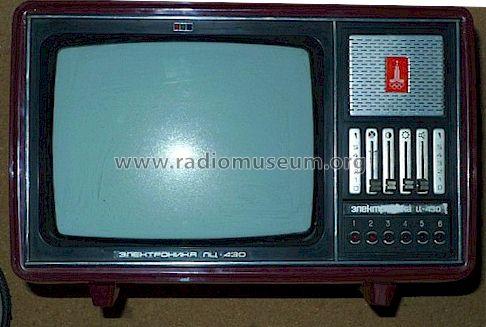

Èlektronika - Электроника LC-430 ЛЦ-430; Magneton factory, (ID = 1448523) Television Èlektronika - Электроника LC-430 ЛЦ-430; Magneton factory, (ID = 1244907) Television
Use red slider bar for more.

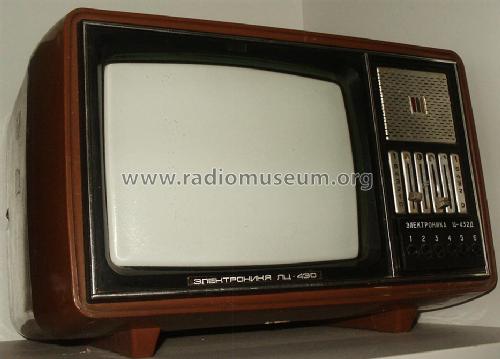

Èlektronika - Электроника LC-430 ЛЦ-430; Magneton factory, (ID = 1448523) Television
Magneton factory,: Èlektronika - Электроника LC-430 ЛЦ-430 [Television] ID = 1448523 933x671
Select picture or schematic to display from thumbnails on the right and click for download.
For model Èlektronika - Электроника LC-430 ЛЦ-430, Magneton factory, Leningrad, Russia:
Gerät steht im Muzeum Przemysłu i Kolejnictwa na Śląsku - Museum of Industry and Railway in Silesia (ex. Königszelt)

Country:  Soviet Union
Manufacturer / Brand:  Magneton factory, Leningrad, Russia
Year: 1980 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: 25ЛК2Ц
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general); ZF/IF 38900 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Line / Batteries (any type) / 220 / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Èlektronika - Электроника LC-430 ЛЦ-430 - Magneton factory, Leningrad,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 362 x 245 x 275 mm / 14.3 x 9.6 x 10.8 inch
Notes VHF, UHF (Bd. I ... V), SECAM, Kanäle 6 … 12 / 21 … 60, 315 … 6300 Hz, Bildröhre = 90° Inline, Implosionsschutz: SELBOND, Sensortasten, Modultechnik, Portable
Net weight (2.2 lb = 1 kg) 8.7 kg / 19 lb 2.6 oz (19.163 lb)
Collectors' prices

Model page created by Reinhard Riek. See "Data change" for further contributors.
