Mišutka - Мишутка

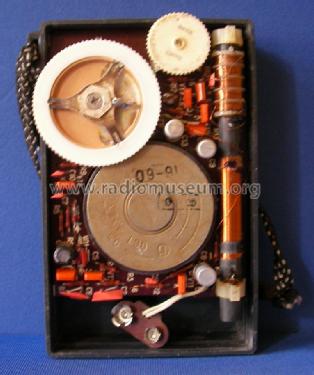

Mišutka - Мишутка ; Magneton factory, (ID = 1476004) Radio
Mišutka - Мишутка ; Magneton factory, (ID = 1475936) Radio Mišutka - Мишутка ; Magneton factory, (ID = 1322092) Radio
Mišutka - Мишутка ; Magneton factory, (ID = 1322097) Radio Mišutka - Мишутка ; Magneton factory, (ID = 1322099) Radio
Mišutka - Мишутка ; Magneton factory, (ID = 1322101) Radio Mišutka - Мишутка ; Magneton factory, (ID = 1475937) Radio
Use red slider bar for more.
Mišutka - Мишутка ; Magneton factory, (ID = 1475936) Radio
Magneton factory,: Mišutka - Мишутка [Radio] ID = 1475936 649x915
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mišutka - Мишутка, Magneton factory, Leningrad, Russia

Country:  Soviet Union
Manufacturer / Brand:  Magneton factory, Leningrad, Russia
Year: 1980–1996 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: КТ315 КТ315 КТ315 КТ315 КТ361 КТ315 КТ315 КТ315
Main principle TRF with diode detector
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out 0.06 W (unknown quality)
from Radiomuseum.org Model: Mišutka - Мишутка - Magneton factory, Leningrad,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 70 x 115 x 30 mm / 2.8 x 4.5 x 1.2 inch
Notes

TRF pocket receiver for LW and MW reception.

See also the differently shaped model Зенит - Zenit.

Net weight (2.2 lb = 1 kg) 0.250 kg / 0 lb 8.8 oz (0.551 lb)
Price in first year of sale 11.00 rubles
Collectors' prices
Source of data -- Schematic

Model page created by Didier Tholomier. See "Data change" for further contributors.



All listed radios etc. from Magneton factory, Leningrad, Russia
Here you find 6 models, 6 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
