• Country
• United States of America (USA)

• Manufacturer / Brand
• Maguire Industries, Inc.

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 175655

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 14Q7 7AG7 14B6 14A4 50L6GT 50L6GT 35Z5

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• from Radiomuseum.org
• Model: 700-E - Maguire Industries, Inc.

• Shape
• Tablemodel, with any shape - general.

• Notes

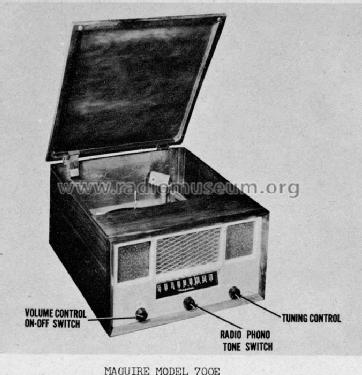

• The Maguire model 700-E is an AC Operated Combination Phono-Radio Superheterodyne with Loop Antenna.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date: Mar 1947, Set 15, Folder 475-17)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
