12FM782 Ch= 12C20E

12FM782 Ch= 12C20E; Majestic Radio & (ID = 747533) Radio

12FM782 Ch= 12C20E; Majestic Radio & (ID = 747535) Radio

12FM782 Ch= 12C20E; Majestic Radio & (ID = 747537) Radio

12FM782 Ch= 12C20E; Majestic Radio & (ID = 747539) Radio

12FM782 Ch= 12C20E; Majestic Radio & (ID = 747541) Radio

12FM782 Ch= 12C20E; Majestic Radio & (ID = 747542) Radio

12FM782 Ch= 12C20E; Majestic Radio & (ID = 747545) Radio

12FM782 Ch= 12C20E; Majestic Radio & (ID = 747548) Radio
Use red slider bar for more.
12FM782 Ch= 12C20E; Majestic Radio & (ID = 747533) Radio

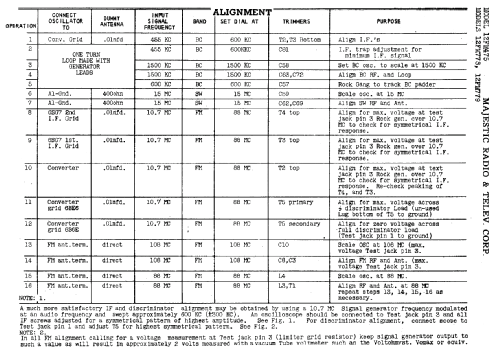

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Majestic Radio & Television Co.,(post 1932)
Year: 1951 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 12: 6BA6 6BE6 6SG7 6SA7 6SG7 6SG7 6SH7 6S8 6SJ7 6V6 6V6 5U4G
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out
from Radiomuseum.org Model: 12FM782 Ch= 12C20E - Majestic Radio & Television Co
Material Wooden case
Shape Console with any shape - in general
Notes Same as Model 12FM778 (Ch= 12B26E) but without pusbuttons.
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 19 = 1949 and before
Literature/Schematics (1) Rider's Perpetual, Volume 17 = covering 1947 (see 12FM778 ,Riders 17-27 to 33 ; 19-4)
