• Country
• United States of America (USA)

• Manufacturer / Brand
• Majestic Radio & Television Co.,(post 1932)

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 46513

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6U7G 6A8G 6J5G 6U7G 6U5 6U7G 6J5G 6Q7G 6U7G 6Q7G 6J5G 6J5G 6J5G 6AC5G 6AC5G 5X4G

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Power out
• 8 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

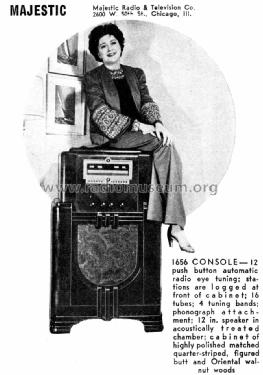

• Model: 1656-S - Majestic Radio & Television Co

• Shape
• Console with Push Buttons.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 14 = 1944 = before 1943

• Literature/Schematics (1)
• Pre-War Consoles (Riders 14-11, 12)

• Literature/Schematics (2)

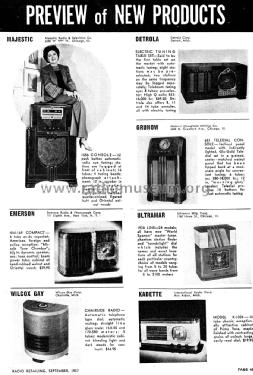

• Radio Retailing (Radio & Television R.) (September 1937.)
