1A50A

1A50A ; Majestic Radio & (ID = 741723) Radio
1A50A ; Majestic Radio & (ID = 322172) Radio 1A50A ; Majestic Radio & (ID = 322173) Radio
1A50A ; Majestic Radio & (ID = 322174) Radio 1A50A ; Majestic Radio & (ID = 1439584) Radio
Use red slider bar for more.

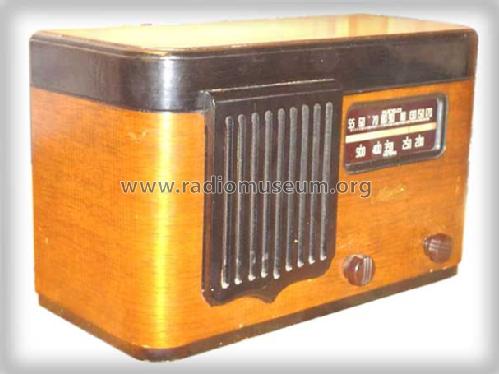

1A50A ; Majestic Radio & (ID = 322172) Radio
Majestic Radio &: 1A50A [Radio] ID = 322172 608x455
Select picture or schematic to display from thumbnails on the right and click for download.
For model 1A50A, Majestic Radio & Television Co.,(post 1932):
Ebay Nr. 230124194574 Bild bearbeitet.

Country:  United States of America (USA)
Manufacturer / Brand:  Majestic Radio & Television Co.,(post 1932)
Year: 1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 6D6 75 41 80
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 1A50A - Majestic Radio & Television Co
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes Built in loop antenna.
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965

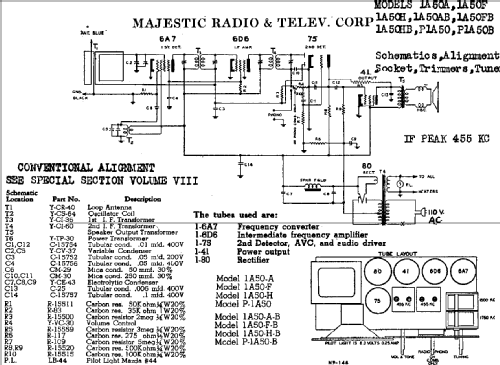

Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Mentioned in Table Top Radios Vol. 1 Stein 98
Literature/Schematics (1) Riders 11-1
