For model 1S49 Melody Cruiser, Majestic Radio & Television Co.,(post 1932)

Country:  United States of America (USA)
Manufacturer / Brand:  Majestic Radio & Television Co.,(post 1932)
Year: 1940 Category: Broadcast Receiver - or past WW2 Tuner

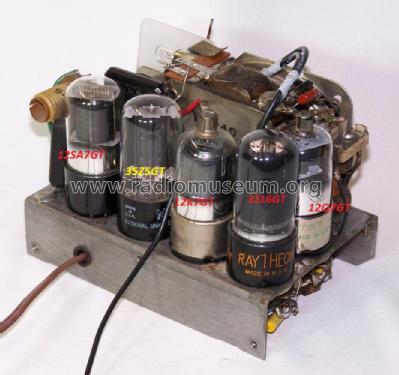

Valves / Tubes 5: 12SA7GT 12K7GT 12Q7GT 35L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 cm = 3.1 inch
Power out
from Radiomuseum.org Model: 1S49 Melody Cruiser - Majestic Radio & Television Co

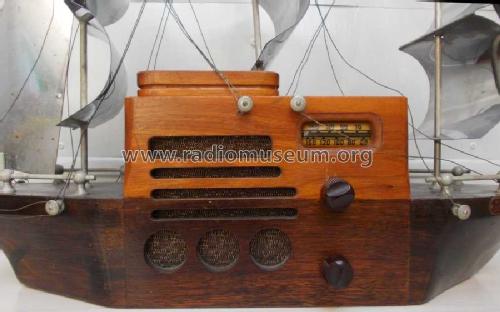

Material Wooden case

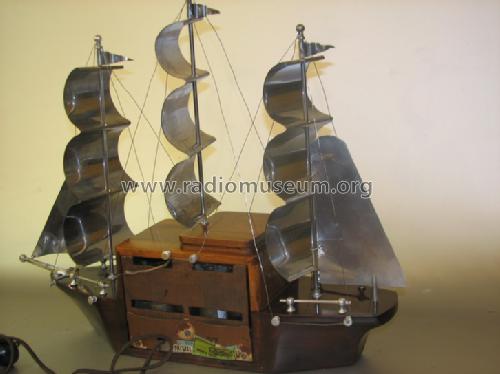

Shape Design Radio or Novelty / Gadget - fancy or unusual shape.
Dimensions (WHD) 20 x 16 x 6 inch / 508 x 406 x 152 mm
Notes Both spellings are in use: 1S49 (Riders) and IS49 (Machine Age).
Net weight (2.2 lb = 1 kg) 3.3 kg / 7 lb 4.3 oz (7.269 lb)
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 14 = 1944 = before 1943
Mentioned in Table Top Radios Vol. 1 Stein 98
Literature/Schematics (1) Riders 14-2
