3C70

3C70 ; Majestic Radio & (ID = 744664) Radio
3C70 ; Majestic Radio & (ID = 2144825) Radio 3C70 ; Majestic Radio & (ID = 2144827) Radio
3C70 ; Majestic Radio & (ID = 2144826) Radio
Use red slider bar for more.

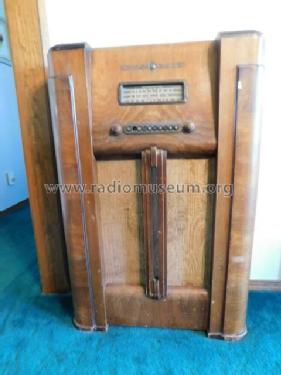

3C70 ; Majestic Radio & (ID = 2144825) Radio
Majestic Radio &: 3C70 [Radio] ID = 2144825 480x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model 3C70, Majestic Radio & Television Co.,(post 1932):
Found on Craig's List for sale asking $75 .texoma.craigslist.org/atq/6237339342.html

Country:  United States of America (USA)
Manufacturer / Brand:  Majestic Radio & Television Co.,(post 1932)
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6SA7 6SK7 6Q7G 76 6U5 6AC5G 5Y3G
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: 3C70 - Majestic Radio & Television Co
Material Wooden case
Shape Console with Push Buttons.
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Literature/Schematics (1) Riders 11-6
