3SC80B
Use red slider bar for more.

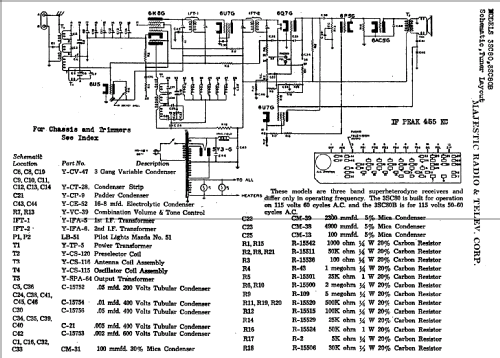

Select picture or schematic to display from thumbnails on the right and click for download.
| Main principle |
Superhet with RF-stage; ZF/IF 455 kHz
|
| Tuned circuits |
7 AM circuit(s) |
| Wave bands |
Broadcast, Short Wave(s) and Police. |
| Details |
|
| Power type and voltage |
Alternating Current supply (AC) / 115 Volt |
| Loudspeaker |
Electro Magnetic Dynamic LS (moving-coil with field excitation coil) |
| Power out |
|
| from Radiomuseum.org |
Model: 3SC80B - Majestic Radio & Television Co |
| External source of data |
Ernst Erb |
| Circuit diagram reference |
Rider's Perpetual, Volume 11 = ca. 1940 and before |
| Literature/Schematics (1) |
Riders 11-4, 8 |
