408 Ch= 408

408 Ch= 408; Majestic Radio & (ID = 469165) Radio
Use red slider bar for more.
408 Ch= 408; Majestic Radio & (ID = 469165) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Majestic Radio & Television Co.,(post 1932)
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7GT 12SK7GT 12SQ7GT 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 456 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: 408 Ch= 408 - Majestic Radio & Television Co
External source of data Ernst Erb

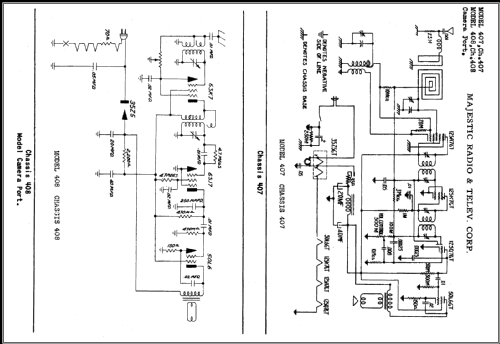

Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before


All listed radios etc. from Majestic Radio & Television Co.,(post 1932)
Here you find 333 models, 163 with images and 273 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
