49B Duo Moderne

49B Duo Moderne ; Majestic Radio & (ID = 1659806) Radio 49B Duo Moderne ; Majestic Radio & (ID = 1659807) Radio

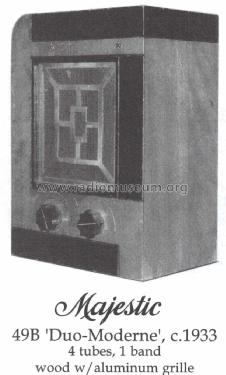

49B Duo Moderne ; Majestic Radio & (ID = 1466045) Radio 49B Duo Moderne ; Majestic Radio & (ID = 1442452) Radio
Use red slider bar for more.
49B Duo Moderne ; Majestic Radio & (ID = 1659806) Radio
Majestic Radio &: 49B Duo Moderne [Radio] ID = 1659806 851x1200
Select picture or schematic to display from thumbnails on the right and click for download.
For model 49B Duo Moderne, Majestic Radio & Television Co.,(post 1932):
Scanned from the Majestic Folder 'Smart Set'.

Country:  United States of America (USA)
Manufacturer / Brand:  Majestic Radio & Television Co.,(post 1932)
Year: 1933 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4:
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 49B Duo Moderne - Majestic Radio & Television Co
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 210 x 292 x 150 mm / 8.3 x 11.5 x 5.9 inch
Notes

Wood with aluminum grille.

Mentioned in Table Top Radios Vol. 1 Stein 98 (page 110.)
Literature/Schematics (1) Machine Age to Jet Age II
Literature/Schematics (2) Cathedral & Tombstone Radios (page 169.)
Literature/Schematics (3) The Majestic Folder "Smart Set".

Model page created by Noemi Erb. See "Data change" for further contributors.
