For model 51 post war, Majestic Radio & Television Co.,(post 1932):
Greg Mercurio American Radio Design

Country:  United States of America (USA)
Manufacturer / Brand:  Majestic Radio & Television Co.,(post 1932)
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner

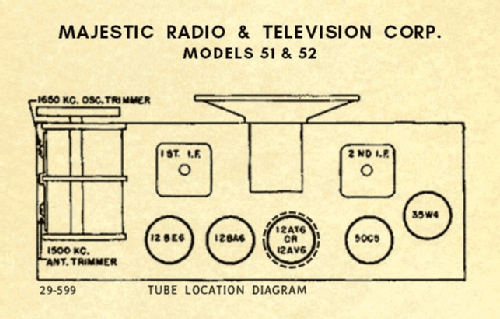

Valves / Tubes 5: 12BE6 12BA6 12AV6 or 12AT6 50C5 35W4
Conflicting model year with tube data.
The model date contradicts tube dates. [ 12AV6 (1948) 50C5 (1948)]
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: 51 [post war] - Majestic Radio & Television Co
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Notes

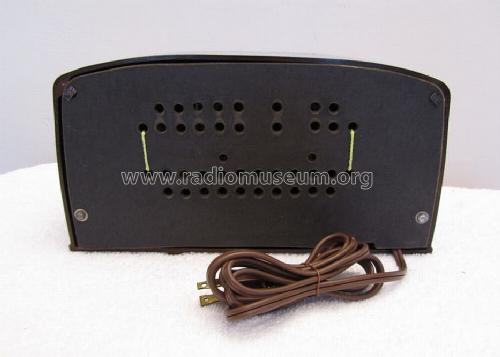

Brown Bakelite

Same model available in ivory plaskon: model 52 post war.

Source of data Rider's Perpetual, Volume 22 = covering 1951
Mentioned in Table Top Radios Vol. 1 Stein 98 (page 110.)

Model page created by Egon Penker. See "Data change" for further contributors.
