- Country
- United States of America (USA)
- Manufacturer / Brand
- Majestic Radio & Television Co.,(post 1932)
- Year
- 1938 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 46597
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Bakelite case
- from Radiomuseum.org

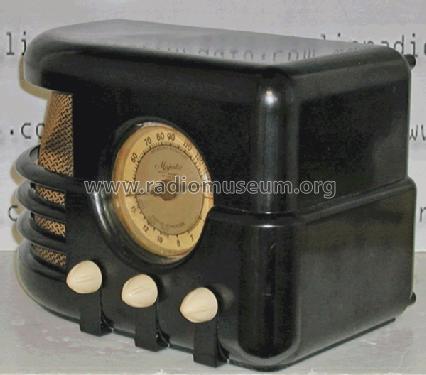

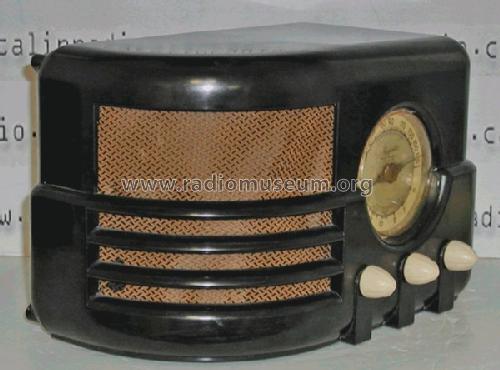

- Model: 551 - Majestic Radio & Television Co
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 310 x 200 x 200 mm / 12.2 x 7.9 x 7.9 inch
- Notes
-
See also the export model Majestic 551A for 50-60 Hz, 110-115/230 V operation.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 9 = 1938 and before
- Literature/Schematics (1)
- Riders 9-3
