7C75 Ch= 435
Use red slider bar for more.
Select picture or schematic to display from thumbnails on the right and click for download.
| Main principle |
Superhet with RF-stage; ZF/IF 455 kHz
|
| Wave bands |
Broadcast and Short Wave (SW). |
| Details |
Record Player (perh.Changer) |
| Power type and voltage |
Alternating Current supply (AC) / 115 Volt |
| Loudspeaker |
Electro Magnetic Dynamic LS (moving-coil with field excitation coil) |
| Power out |
|
| from Radiomuseum.org |
Model: 7C75 Ch= 435 - Majestic Radio & Television Co |
| External source of data |
Ernst Erb |

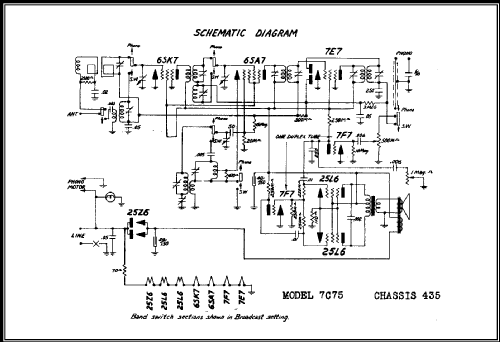

| Circuit diagram reference |
Rider's Perpetual, Volume 15 = 1947 and before |
