8FM744 Ch= 8B06D

8FM744 Ch= 8B06D; Majestic Radio & (ID = 389875) Radio

8FM744 Ch= 8B06D; Majestic Radio & (ID = 389876) Radio

8FM744 Ch= 8B06D; Majestic Radio & (ID = 389877) Radio

8FM744 Ch= 8B06D; Majestic Radio & (ID = 389878) Radio

8FM744 Ch= 8B06D; Majestic Radio & (ID = 389879) Radio

8FM744 Ch= 8B06D; Majestic Radio & (ID = 389880) Radio

8FM744 Ch= 8B06D; Majestic Radio & (ID = 917348) Radio

8FM744 Ch= 8B06D; Majestic Radio & (ID = 917349) Radio

8FM744 Ch= 8B06D; Majestic Radio & (ID = 917350) Radio

8FM744 Ch= 8B06D; Majestic Radio & (ID = 917351) Radio
8FM744 Ch= 8B06D; Majestic Radio & (ID = 293568) Radio 8FM744 Ch= 8B06D; Majestic Radio & (ID = 917347) Radio
Use red slider bar for more.
8FM744 Ch= 8B06D; Majestic Radio & (ID = 293568) Radio
Majestic Radio &: 8FM744 Ch= 8B06D [Radio] ID = 293568 723x496
Select picture or schematic to display from thumbnails on the right and click for download.
For model 8FM744 Ch= 8B06D, Majestic Radio & Television Co.,(post 1932):
Ebay Nr. 260081914006 Bild bearbeitet.

Country:  United States of America (USA)
Manufacturer / Brand:  Majestic Radio & Television Co.,(post 1932)
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6BA6 6BE6 6SG7 6SG7 6SH7 6S8 25L6 25Z6
Main principle ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out
from Radiomuseum.org Model: 8FM744 Ch= 8B06D - Majestic Radio & Television Co
Material Wooden case
Shape Tablemodel, with any shape - general.
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 17 = 1948 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965

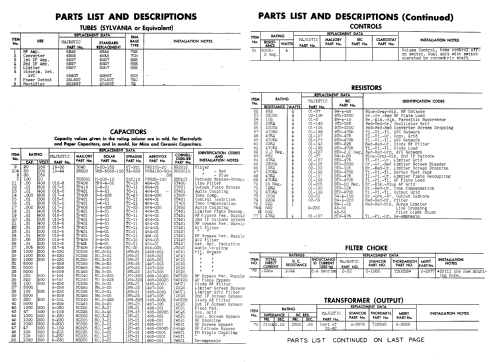

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 30, Folder 4720-15)


All listed radios etc. from Majestic Radio & Television Co.,(post 1932)
Here you find 333 models, 163 with images and 273 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
