8JL771A Ch= 4810A

8JL771A Ch= 4810A; Majestic Radio & (ID = 390629) Radio

8JL771A Ch= 4810A; Majestic Radio & (ID = 390630) Radio

8JL771A Ch= 4810A; Majestic Radio & (ID = 390631) Radio

8JL771A Ch= 4810A; Majestic Radio & (ID = 390632) Radio
8JL771A Ch= 4810A; Majestic Radio & (ID = 1692036) Radio 8JL771A Ch= 4810A; Majestic Radio & (ID = 1692034) Radio
8JL771A Ch= 4810A; Majestic Radio & (ID = 1692027) Radio 8JL771A Ch= 4810A; Majestic Radio & (ID = 1692030) Radio
8JL771A Ch= 4810A; Majestic Radio & (ID = 1692031) Radio 8JL771A Ch= 4810A; Majestic Radio & (ID = 1692032) Radio
8JL771A Ch= 4810A; Majestic Radio & (ID = 1692035) Radio 8JL771A Ch= 4810A; Majestic Radio & (ID = 1692038) Radio
8JL771A Ch= 4810A; Majestic Radio & (ID = 1692039) Radio
Use red slider bar for more.
8JL771A Ch= 4810A; Majestic Radio & (ID = 1692036) Radio

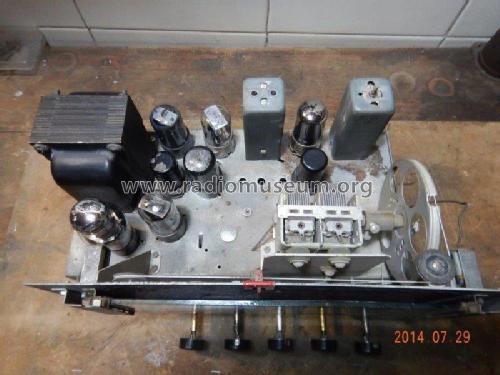

Majestic Radio &: 8JL771A Ch= 4810A [Radio] ID = 1692036 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model 8JL771A Ch= 4810A, Majestic Radio & Television Co.,(post 1932)

Country:  United States of America (USA)
Manufacturer / Brand:  Majestic Radio & Television Co.,(post 1932)
Year: 1949 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6SA7GT 6SK7GT 6SQ7GT 6J5 6K6 6K6 5Y3GT VR105
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 8JL771A Ch= 4810A - Majestic Radio & Television Co
Notes Voltage regulator VR105.
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 17 = 1948 and before
