T201-A

T201-A ; Majestic Radio & (ID = 742523) Radio
T201-A ; Majestic Radio & (ID = 2071316) Radio T201-A ; Majestic Radio & (ID = 2071317) Radio
T201-A ; Majestic Radio & (ID = 2071318) Radio T201-A ; Majestic Radio & (ID = 2071319) Radio

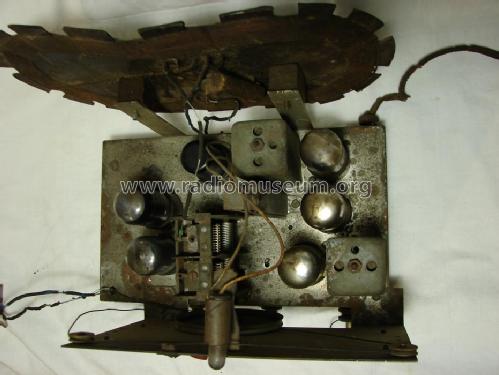

T201-A ; Majestic Radio & (ID = 2071320) Radio T201-A ; Majestic Radio & (ID = 2071321) Radio
Use red slider bar for more.
T201-A ; Majestic Radio & (ID = 2071316) Radio
Majestic Radio &: T201-A [Radio] ID = 2071316 933x548
Select picture or schematic to display from thumbnails on the right and click for download.
For model T201-A, Majestic Radio & Television Co.,(post 1932)

Country:  United States of America (USA)
Manufacturer / Brand:  Majestic Radio & Television Co.,(post 1932)
Year: 1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6SA7 6SK7 6SQ7 25L6 25L6 25Z6
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: T201-A - Majestic Radio & Television Co
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 13 = 1942 and before
Literature/Schematics (1) Riders 13-4


All listed radios etc. from Majestic Radio & Television Co.,(post 1932)
Here you find 333 models, 166 with images and 273 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
