• Country
• Japan

• Manufacturer / Brand
• Marc; Japan

• Year
• 1965 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 234316

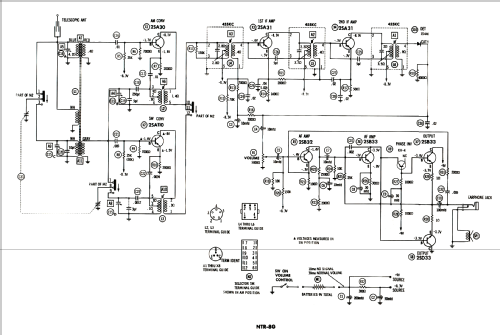

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SA268 or. 2SA110 2SA269 or. 2SA30 2SA269 or. 2SA31 2SA269 or. 2SA31 2SB32 2SB33 2SB33 2SD33 1S446

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Dry Batteries / AA: 6 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch

• Material
• Various materials

• from Radiomuseum.org
• Model: Globe Radio AM/SW NTR 8G - Marc; Japan

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 170 x 210 x 170 mm / 6.7 x 8.3 x 6.7 inch

• Notes

• Material: Base black Bakelite, housing Plexiglas with continents molded inside the globe, reels gold plated aluminium.

  Made in Japan 508

• Net weight (2.2 lb = 1 kg)
• 0.9 kg / 1 lb 15.7 oz (1.982 lb)

• Literature/Schematics (1)
• Photofact TSM Transistor Radio Series SAMS (TSM-63)

• Author
• Model page created by José Manuel Silvestre. See "Data change" for further contributors.
