253AC ; Marconi Co. (ID = 893270) Radio

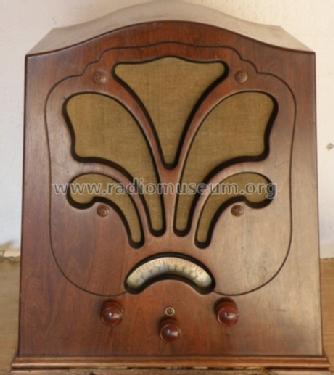

Marconi Co.: 253AC [Radio] ID = 893270 461x517
Select picture or schematic to display from thumbnails on the right and click for download.
For model 253AC, Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)

Country:  Great Britain (UK)
Manufacturer / Brand:  Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)
Year: 1932/1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: MS4B MH4 MPT4 U12
Main principle TRF with regeneration
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: 253AC - Marconi Co. Marconiphone,
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 430 x 450 x 300 mm / 16.9 x 17.7 x 11.8 inch
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Source of data - - Data from my own collection
Literature/Schematics (1) Trader sheet 573

Model page created by Guglielmo Rebuffo. See "Data change" for further contributors.
