• Country
• France

• Manufacturer / Brand
• Marconi (marque), Cie. Fse. du Gramophone; Paris

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 122417

• Number of Tubes
• 5

• Valves / Tubes
• EK2 EF5 EBC3 EL3 EZ3

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 90; 110; 130; 150; 220; 250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 26 Ch= 537bis - Marconi marque, Cie. Fse. du

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 370 x 470 x 240 mm / 14.6 x 18.5 x 9.4 inch

• Notes

• 3 gammes d'ondes: PO 200 à 550 m, GO 1000 à 2000 m, OC 16 à 50m.

  Equivalent au Pathé 5 TO.

• Price in first year of sale
• 1,800.00 FRF

• Source of data
• -- Original-techn. papers.

• Mentioned in

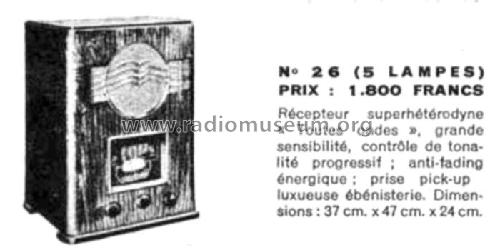

• -- Original prospect or advert (Dépliant 1936)

• Literature/Schematics (1)
• Le grand livre de la TSF (Doctsf Ref 9681)

• Author
• Model page created by Olivier Decelle. See "Data change" for further contributors.
