• Country
• Great Britain (UK)

• Manufacturer / Brand
• Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)

• Year
• 1938 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 194304

• Number of Tubes
• 3

• Valves / Tubes
• VS24 VS24 KT2

• Main principle
• TRF with regeneration

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage

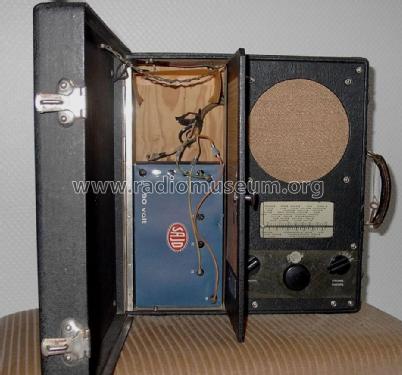

• Storage and/or dry batteries

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 15 cm = 5.9 inch

• Material
• Wooden case

• from Radiomuseum.org

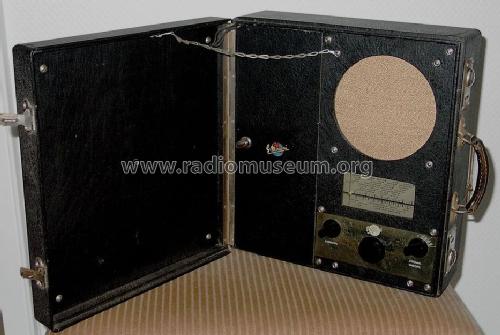

• Model: 381 bat - Marconi Co. Marconiphone,

• Shape

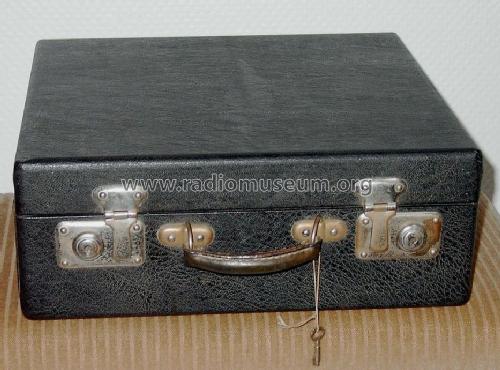

• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 350 x 380 x 130 mm / 13.8 x 15 x 5.1 inch

• Notes
• Similar model "Radiola 381 bat" by SRA, Sweden.

• Other Models

• Here you find 500 models, 334 with images and 316 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
