- Country
- Great Britain (UK)
- Manufacturer / Brand
- Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)
- Year
- 1969
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 151127

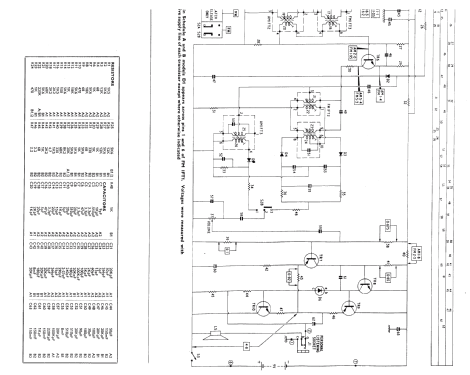

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Main principle
- Superheterodyne (common); ZF/IF 475/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.3 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

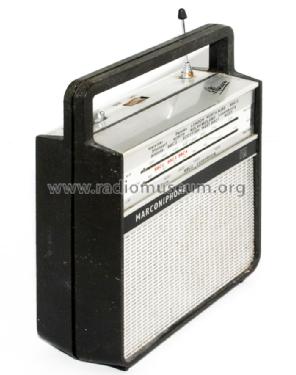

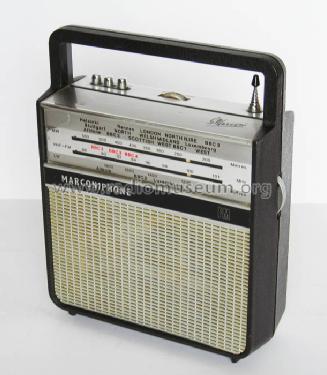

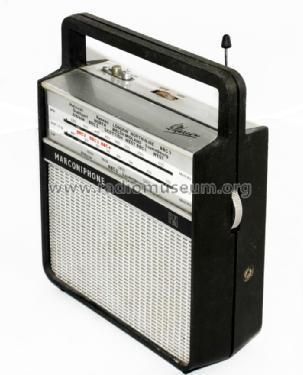

- Model: 4166 - Marconi Co. Marconiphone,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 760 x 195 x 58 mm / 29.9 x 7.7 x 2.3 inch
- Notes
-

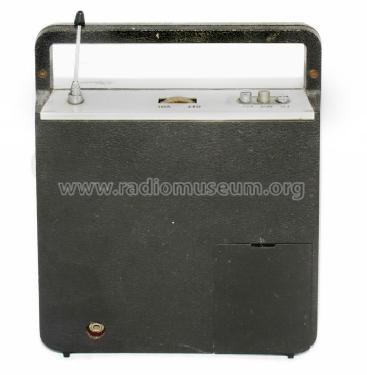

Socket for earphone.
Manufactured by the British Radio Corporation Ltd. and sold under the Marconiphone brand name. Also sold under the His Masters Voice (HMV) brand name as model 2166.
- Net weight (2.2 lb = 1 kg)
- 0.6 kg / 1 lb 5.1 oz (1.322 lb)
- Price in first year of sale
- 15.00 GBP
- Mentioned in
- Radio! Radio!
- Literature/Schematics (1)
- ERT Service Chart 1722
