His Master's Voice: 531 [Radio] ID = 1573995 712x1400
Select picture or schematic to display from thumbnails on the right and click for download.
For model 531, His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB:
aus dänischem Faltblatt 'Radio-Grammophoner'

Country:  Great Britain (UK)
Manufacturer / Brand:  His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB
Year: 1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: MS4 MHL4 MS4 MS4 MS4 ML4 ML4 PX4 PX4 U8
Main principle Superhet with RF-stage; ZF/IF 125.2 kHz; Screengrid 1926-1935
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 95 - 260 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 531 - His Master's Voice Masters,
Material Wooden case

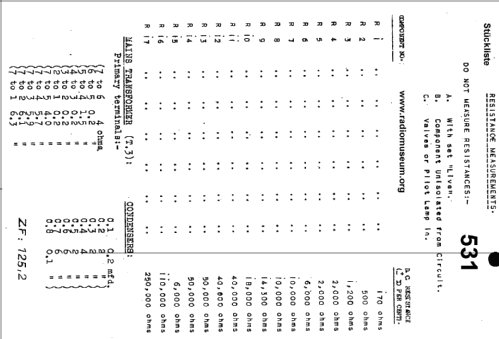

Notes Mains supply voltage doe MVH 531: 95-102 / 103-110 / 111-118 / 119-127 / 128-136 / 137-145 / 146-155 / 156-164 / 190-205 / 206-222 / 223-240 / 241-260.
External source of data E. Erb 3-907007-36-0
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
