532C

• Country
• Great Britain (UK)

• Manufacturer / Brand
• His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB

• Year
• 1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 17859

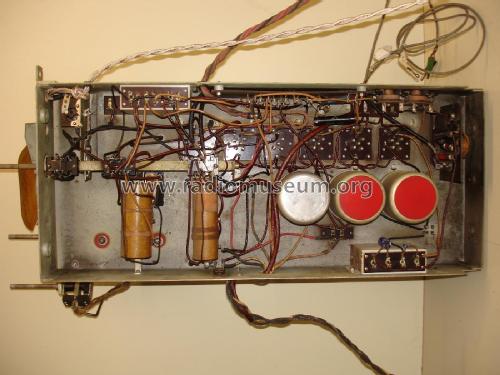

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• VMS4B MHL4 VMS4 VMS4B MS4B ML4 MH4 PX4

• from Radiomuseum.org
• Model: 532C - His Master's Voice Masters,

• Notes
• PX4, U14

• External source of data
• E. Erb 3-907007-36-0

• Circuit diagram reference
• Die «Thali Schemasammlung» führt das Modell.
