• Year
  • 1931/1932
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 17861

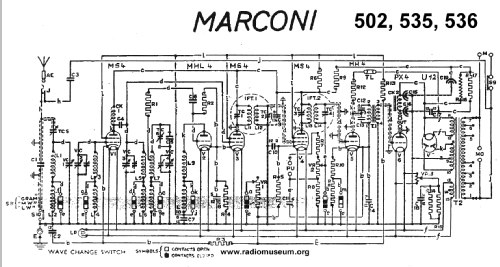

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superhet with RF-stage; ZF/IF 125 kHz
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 100-160; 200-260 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 3 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 536 - Marconi Co. Marconiphone,
  • Shape
  • Console, Highboy (legs > 50 %).
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • -- Original-techn. papers.
  • Circuit diagram reference
  • Die «Thali Schemasammlung» führt das Modell.
