His Master's Voice: 541 [Radio] ID = 2099474 1400x1966
Select picture or schematic to display from thumbnails on the right and click for download.
For model 541, His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB

Country:  Great Britain (UK)
Manufacturer / Brand:  His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: MX40 VMS4 MHD4 MPT4 MU12
Main principle Superheterodyne (common); ZF/IF 125 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.

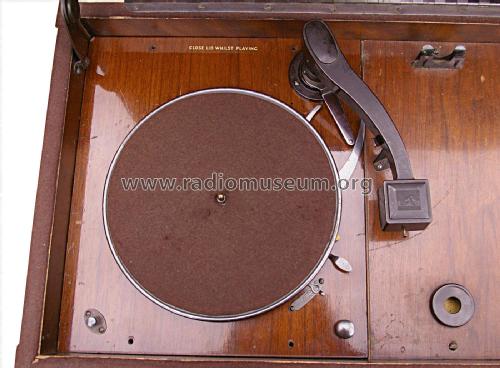

Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 200-210; 211-230; 231-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 541 - His Master's Voice Masters,
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes The Marconi-HMV model 541 is similar to the Marconiphone 287 radiogram. The following models share the same schematic: 441, 444 and 541 AC.
External source of data E. Erb 3-907007-36-0
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
Literature/Schematics (4) His Master's Voice, Original Sheet
