• Country
• France

• Manufacturer / Brand
• Marconi (marque), Cie. Fse. du Gramophone; Paris

• Year
• 1949/1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75750

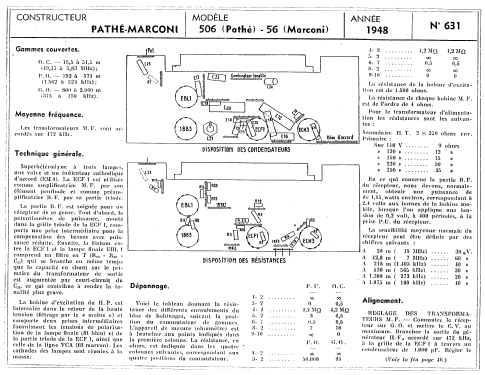

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH3 ECF1 EBL1 1883 EM4

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: 56B Ch= 546K - Marconi marque, Cie. Fse. du

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 430 x 310 x 200 mm / 16.9 x 12.2 x 7.9 inch

• Notes

• Même caractéristiques que modèle 56A, mais avec oeil magique.

  Équivalent au Pathé 506B.

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Patrice Zeissloff. See "Data change" for further contributors.

• Other Models

• Here you find 97 models, 75 with images and 30 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Marconi (marque), Cie. Fse. du Gramophone; Paris
