- Country
- Great Britain (UK)
- Manufacturer / Brand
- His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 17787

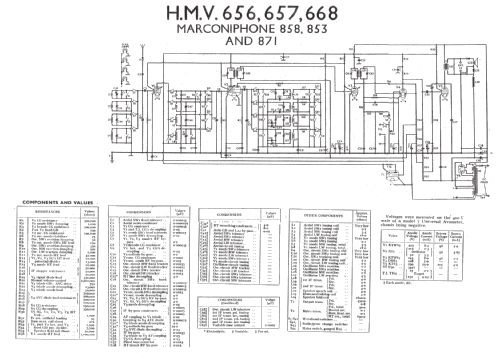

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 195-255 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 668 - His Master's Voice Masters,
- Shape
- Console with any shape - in general
- Notes
- Radiogram with record changer, magic eye and motor driven auto-tuning. Similar to the Marconiphone 871 radiogram. Similar chassis to the HMV 656 and 657 radios.
- External source of data
- E. Erb 3-907007-36-0
- Circuit diagram reference
- Die «Thali Schemasammlung» führt das Modell.
- Literature/Schematics (1)
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (396)
- Other Models
-
Here you find 414 models, 323 with images and 242 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB
