706

706; Marconi Co. (ID = 1928437) TV Radio
706; Marconi Co. (ID = 1689194) TV Radio 706; Marconi Co. (ID = 1030118) TV Radio
706; Marconi Co. (ID = 1051071) TV Radio
Use red slider bar for more.
706; Marconi Co. (ID = 1689194) TV Radio
Marconi Co.: 706 [TV Radio] ID = 1689194 933x730
Select picture or schematic to display from thumbnails on the right and click for download.
For model 706, Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice):

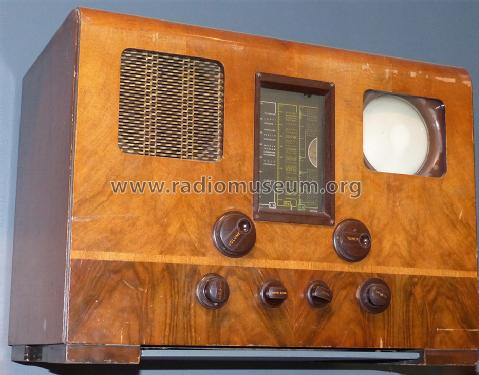

Das Gerät steht in der DASA in Dortmund

Country:  Great Britain (UK)
Manufacturer / Brand:  Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)
Year: 1939 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 17: MSP4_5pin X41C KTZ41 MHD4 KT41 KTZ41 KTZ41 MS4B KTZ63 KTZ63 KT63 KTZ63 KT63 D42 U17 U52 3/1
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out 3 W (unknown quality)
from Radiomuseum.org Model: 706 - Marconi Co. Marconiphone,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 23 x 17.33 x 14.5 inch / 584 x 440 x 368 mm

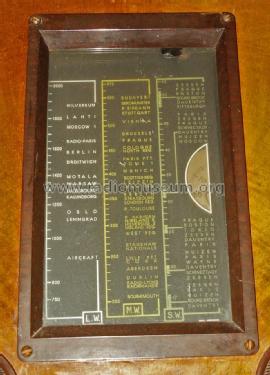

Notes 5" round CRT 405 lines TV, one VHF band I channel (London), LW, MW and SW band (16.5 - 52m) radio. Model identical to HMV 904.
Collectors' prices
Source of data -- Original-techn. papers.

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)
Here you find 441 models, 255 with images and 276 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
