Marconiphone 235

Marconiphone 235; Marconi Co. (ID = 307164) Radio

Marconiphone 235; Marconi Co. (ID = 307165) Radio

Marconiphone 235; Marconi Co. (ID = 1023693) Radio

Marconiphone 235; Marconi Co. (ID = 1023694) Radio

Marconiphone 235; Marconi Co. (ID = 1023695) Radio
Marconiphone 235; Marconi Co. (ID = 218848) Radio Marconiphone 235; Marconi Co. (ID = 218849) Radio
Marconiphone 235; Marconi Co. (ID = 218850) Radio Marconiphone 235; Marconi Co. (ID = 364626) Radio
Marconiphone 235; Marconi Co. (ID = 364628) Radio Marconiphone 235; Marconi Co. (ID = 364630) Radio
Marconiphone 235; Marconi Co. (ID = 699660) Radio Marconiphone 235; Marconi Co. (ID = 1452149) Radio
Marconiphone 235; Marconi Co. (ID = 1452152) Radio Marconiphone 235; Marconi Co. (ID = 1644937) Radio
Use red slider bar for more.
Marconiphone 235; Marconi Co. (ID = 218848) Radio
Marconi Co.: Marconiphone 235 [Radio] ID = 218848 816x616
Select picture or schematic to display from thumbnails on the right and click for download.
For model Marconiphone 235, Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)

Country:  Great Britain (UK)
Manufacturer / Brand:  Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: VMS4B MH41 N41 U12
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Wave bands Broadcast (MW) and Long Wave.
Details

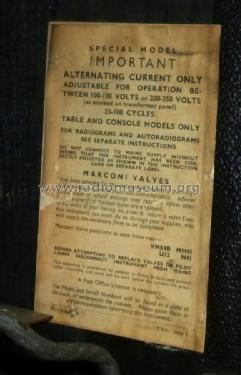

Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Marconiphone 235 - Marconi Co. Marconiphone,
Material Leather / canvas / plastic - over other material
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 16 x 10 x 9 inch / 406 x 254 x 229 mm
Notes

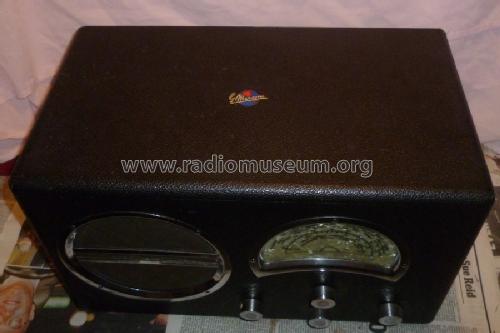

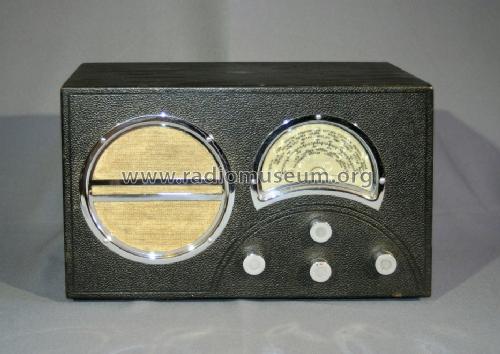

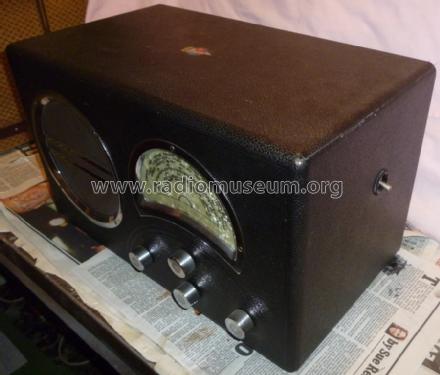

A 2 Band TRF table receiver in a black rexine covered wooden cabinet. The Marconiphone 238 model in a walnut veneered wooden cabinet has a similar chassis. Released August 1935 price £8 18s 6d, reduced in January 1936 to £6 16s 6d.

Price in first year of sale 8.93 GBP
Source of data Radio! Radio!
Literature/Schematics (1) -- Schematic
Literature/Schematics (2) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (687 dated August 26 1944)

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.



All listed radios etc. from Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)
Here you find 486 models, 304 with images and 312 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
