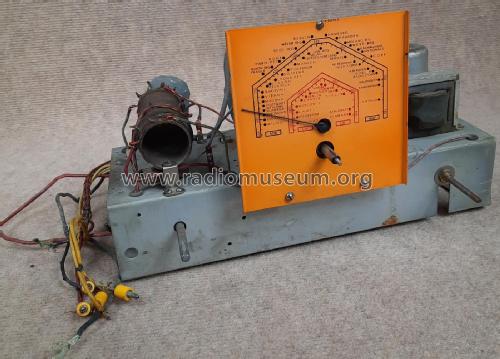

Marconiphone 314

Marconiphone 314; Marconi Co. (ID = 2177038) Radio

Marconiphone 314; Marconi Co. (ID = 2177039) Radio

Marconiphone 314; Marconi Co. (ID = 1035923) Radio

Marconiphone 314; Marconi Co. (ID = 1035924) Radio
Marconiphone 314; Marconi Co. (ID = 2057042) Radio Marconiphone 314; Marconi Co. (ID = 2059598) Radio
Marconiphone 314; Marconi Co. (ID = 2059599) Radio Marconiphone 314; Marconi Co. (ID = 2059600) Radio
Marconiphone 314; Marconi Co. (ID = 2057043) Radio Marconiphone 314; Marconi Co. (ID = 2059601) Radio
Marconiphone 314; Marconi Co. (ID = 2059602) Radio Marconiphone 314; Marconi Co. (ID = 2059603) Radio
Use red slider bar for more.
Marconiphone 314; Marconi Co. (ID = 2057042) Radio
Marconi Co.: Marconiphone 314 [Radio] ID = 2057042 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Marconiphone 314, Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)

Country:  Great Britain (UK)
Manufacturer / Brand:  Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)
Year: 1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: S23 HL2 PT2
Main principle TRF with regeneration
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 2 & 6 & 114 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Marconiphone 314 - Marconi Co. Marconiphone,
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes The chassis in the HMV 167 model is identical.
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (208)
Literature/Schematics (2) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (767)

Model page created by Peter Hoddow. See "Data change" for further contributors.
