Marconiphone Baby

Marconiphone Baby; Marconi Co. (ID = 2271918) Crystal Marconiphone Baby; Marconi Co. (ID = 132128) Crystal
Marconiphone Baby; Marconi Co. (ID = 762112) Crystal Marconiphone Baby; Marconi Co. (ID = 1578396) Crystal
Use red slider bar for more.

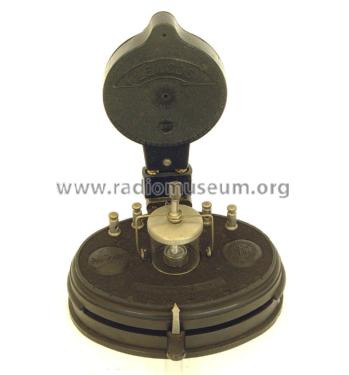

Marconiphone Baby; Marconi Co. (ID = 2271918) Crystal
Marconi Co.: Marconiphone Baby [Crystal] ID = 2271918 1400x1502
Select picture or schematic to display from thumbnails on the right and click for download.
For model Marconiphone Baby, Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice):
Collection privée(Réf 1898, 2383)

Country:  Great Britain (UK)
Manufacturer / Brand:  Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)
Year: 1923 Category: Detector-Radio (Crystal or diode, without tubes/transistors)
schematic requested
Main principle Crystal or Solid State Detector
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Marconiphone Baby - Marconi Co. Marconiphone,
Material Various materials
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 125 x 100 x 85 mm / 4.9 x 3.9 x 3.3 inch
Notes black ebonite oval base; BBC/PMG stamp; GPO No.4215; see also later versions: "Universal Baby" for MW/LW and "Chelmsford Baby" for LW only;
Collectors' prices
Source of data Radio! Radio!
Literature/Schematics (1) Molnár János, A rádiótelefon..., Budapest 1925.

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
