Marconiphone Minstrel 4104

Marconiphone Minstrel 4104; Marconi Co. (ID = 2305505) Radio

Marconiphone Minstrel 4104; Marconi Co. (ID = 2305506) Radio

Marconiphone Minstrel 4104; Marconi Co. (ID = 646899) Radio

Marconiphone Minstrel 4104; Marconi Co. (ID = 646900) Radio
Marconiphone Minstrel 4104; Marconi Co. (ID = 577626) Radio Marconiphone Minstrel 4104; Marconi Co. (ID = 577627) Radio
Marconiphone Minstrel 4104; Marconi Co. (ID = 902248) Radio Marconiphone Minstrel 4104; Marconi Co. (ID = 902249) Radio

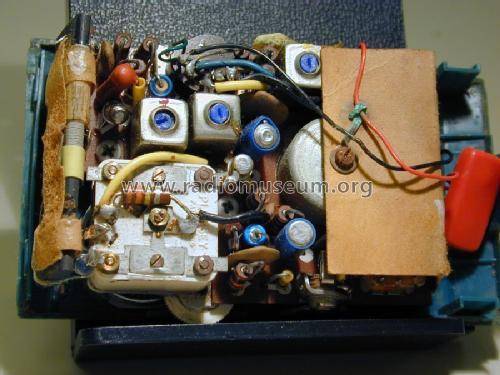

Marconiphone Minstrel 4104; Marconi Co. (ID = 902250) Radio Marconiphone Minstrel 4104; Marconi Co. (ID = 902251) Radio
Marconiphone Minstrel 4104; Marconi Co. (ID = 902252) Radio Marconiphone Minstrel 4104; Marconi Co. (ID = 1398855) Radio
Marconiphone Minstrel 4104; Marconi Co. (ID = 1398856) Radio Marconiphone Minstrel 4104; Marconi Co. (ID = 1398857) Radio
Use red slider bar for more.
Marconiphone Minstrel 4104; Marconi Co. (ID = 577626) Radio

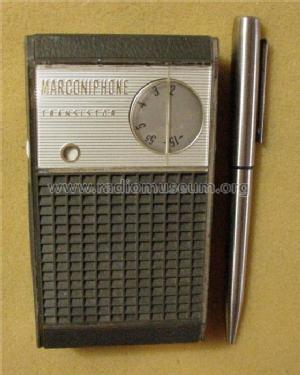

Marconi Co.: Marconiphone Minstrel 4104 [Radio] ID = 577626 561x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Marconiphone Minstrel 4104, Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)

Country:  Great Britain (UK)
Manufacturer / Brand:  Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)
Year: 1962 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: AF127 AF127 AF127 OC81D OC81 OC81
Main principle Superheterodyne (common); ZF/IF 475 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: Marconiphone Minstrel 4104 - Marconi Co. Marconiphone,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 62 x 112 x 32 mm / 2.4 x 4.4 x 1.3 inch
Notes

Pocket transistor radio. MW 185-565 metres, LW preset to 1500 metres. Earphone socket. Various colours known, supplied with leather case. Very similar in appearance to the Philco T-66.

Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)
Collectors' prices
Source of data -- Collector info (Sammler)
Mentioned in Marconi Transistor Radios (see Aldo Andreani's website).
Literature/Schematics (1) Antique Radio Magazine n.54, April 2003, page 56. Written in Italian and English.
Literature/Schematics (2) ERT service chart 1398 dated June 25 1963

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)
Here you find 484 models, 296 with images and 311 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
