• Country
• Great Britain (UK)

• Manufacturer / Brand
• Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 105219

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• X76 W76 DH76 KT71 U76

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 200-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 cm = 3.9 inch

• Material
• Bakelite case

• from Radiomuseum.org

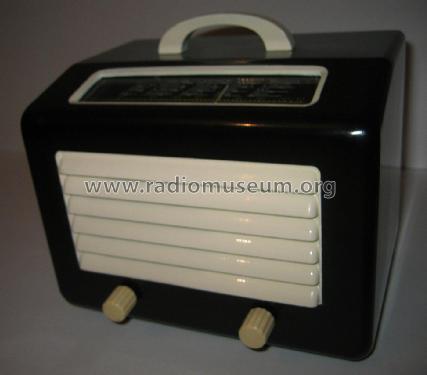

• Model: T11DA - Marconi Co. Marconiphone,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 7 x 8 x 8.75 inch / 178 x 203 x 222 mm

• Notes

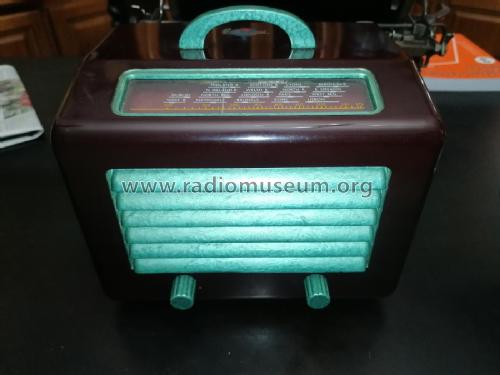

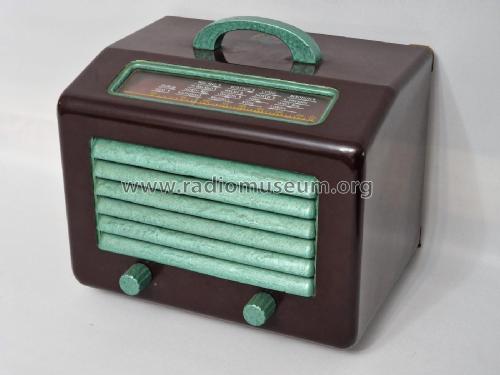

• Price £9.9s. plus £2.1s. tax. Models DA/B & DA/G differ only in their case.

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Price in first year of sale
• 10.00 GBP

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)

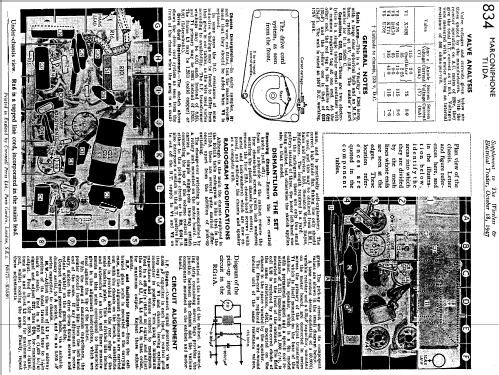

• Trader sheet 834. Paul Stenning CD, vol 4.

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
