• Country
• Spain

• Manufacturer / Brand
• Marconi Española S.A. (Telmar); Villaverde

• Year
• 1960/1961

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 154297

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes

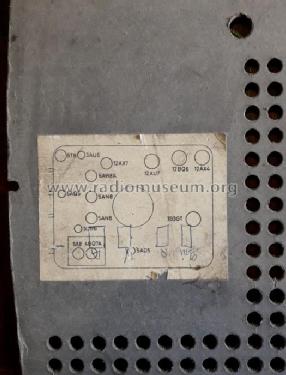

• 4BQ7A 5X8 3CB6 5AN8 6AW8 5AN8 5AQ5 12AU7 12BQ6 12AX4 1B3GT 3AU6 12AX7 5T8 5AQ5 17AVP4 or 17EM9A

• Number of Transistors

• Semiconductors
• GSD5/103 or. GSD5/161 GSD5/2 or. GSD5/4

• Main principle
• Superhet, double/triple conversion; ZF/IF 39000 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: TM-901 - Marconi Española S.A. Telmar;

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes
• Selector rotativo de 10 canales VHF. Valvulas 15 + TRC 17" Antena telescópica opcional 250 pts(ESP).

• Price in first year of sale
• 15,995.00 ESP

• Source of data
• -- Original prospect or advert

• Mentioned in
• Anuncio La vanguardia 27 Noviembre 1960

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
