• Country
• Spain

• Manufacturer / Brand
• Marconi Española S.A. (Telmar); Villaverde

• Year
• 1960/1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 128761

• Number of Tubes
• 4

• Valves / Tubes
• 12BE6 12BA6 12AT6 50C5

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch

• Power out
• 1.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

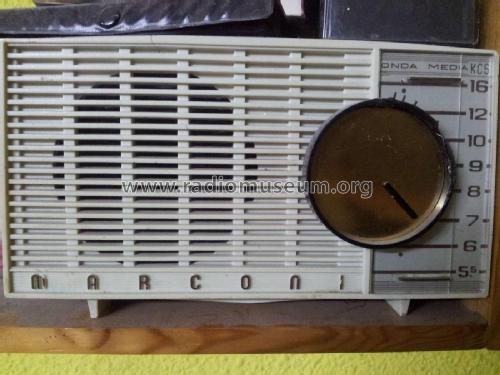

• Model: UM-310 - Marconi Española S.A. Telmar;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 220 x 130 x 100 mm / 8.7 x 5.1 x 3.9 inch

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Diego Fernandez-Fernandez. See "Data change" for further contributors.

• Other Models

• Here you find 191 models, 148 with images and 94 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Marconi Española S.A. (Telmar); Villaverde
