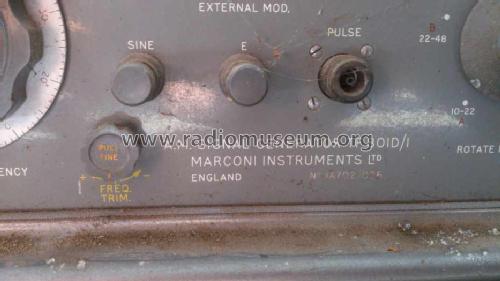

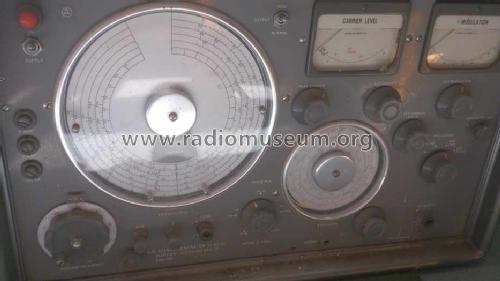

AM Signal Generator TF801D/1/S

Marconi Instruments, Marconi-Ekco (MI, MEI)

  • Year
  • 1955 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 113827

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 100-150; 180-250 V Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: AM Signal Generator TF801D/1/S - Marconi Instruments, Marconi-
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 600 x 370 x 270 mm / 23.6 x 14.6 x 10.6 inch
  • Notes
  • Frequency Range: 10 MHz to 485 MHz, Output: 0.1 µV to 1 V on 50 Ohm, Modulation: internal (1 kHz) or external (30 Hz to 50 kHz) 0 to 90 %, crystal calibrator.
  • Net weight (2.2 lb = 1 kg)
  • 31 kg / 68 lb 4.5 oz (68.282 lb)
  • Source of data
  • -- Collector info (Sammler)
