Carrier deviation meter TF791D

Marconi Instruments, Marconi-Ekco (MI, MEI)

  • Year
  • 1961
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 88123

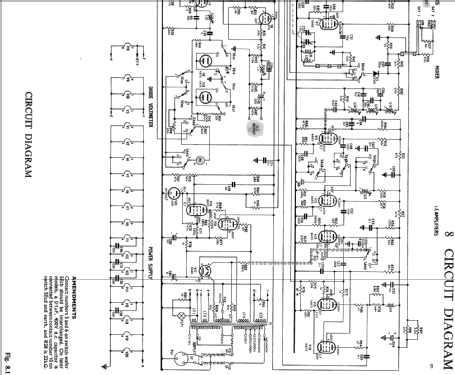

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 19
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 200-250; 100-150 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Power out
  • 100 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Carrier deviation meter TF791D - Marconi Instruments, Marconi-
  • Shape
  • Boatanchor (heavy military or commercial set >20 kg).
  • Dimensions (WHD)
  • 460 x 330 x 280 mm / 18.1 x 13 x 11 inch
  • Notes
  • cet appareil était utilisé par l'aéroport de dorval.
  • Net weight (2.2 lb = 1 kg)
  • 18 kg / 39 lb 10.4 oz (39.648 lb)
  • Price in first year of sale
  • 847.00 DM
  • Source of data
  • -- Original prospect or advert
  • Mentioned in
  • -- Collector info (Sammler)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
