• Country
• Great Britain (UK)

• Manufacturer / Brand
• Marconi Instruments, Marconi-Ekco (MI, MEI)

• Year
• 1963 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 139114

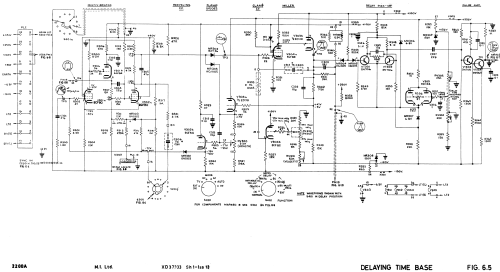

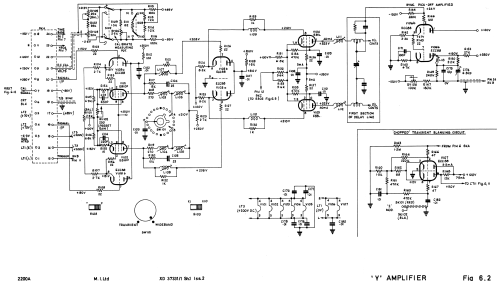

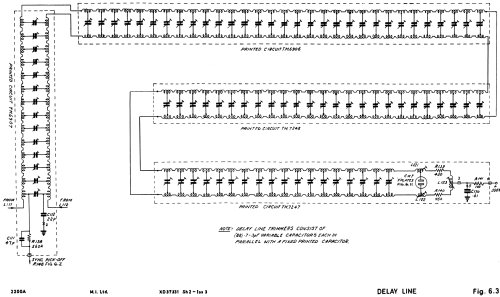

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

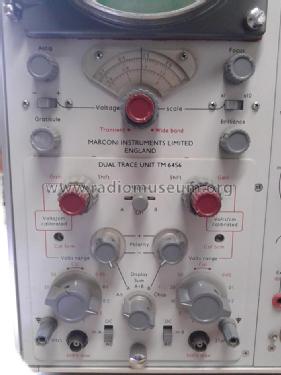

• Model: Oscilloscope TF 2200 - Marconi Instruments, Marconi-

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes
• Oscilloscope TF 2200, Bandbreite 0 bis 35 MHz bei 50 mV/cm ohne Kettenverstärker, 3 Ablenkverzögerungen, Einschübe für Einkanal-und Zweikanaldarstellung sowie Differenzspannungsmessungen.

• Mentioned in
• - - Manufacturers Literature (Radioschau 10. 1963)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
